The Jennings Electronic Industries (JEI) J71 organ
Three manual, produced from 1970 to 1974
Page in progress, January 2026

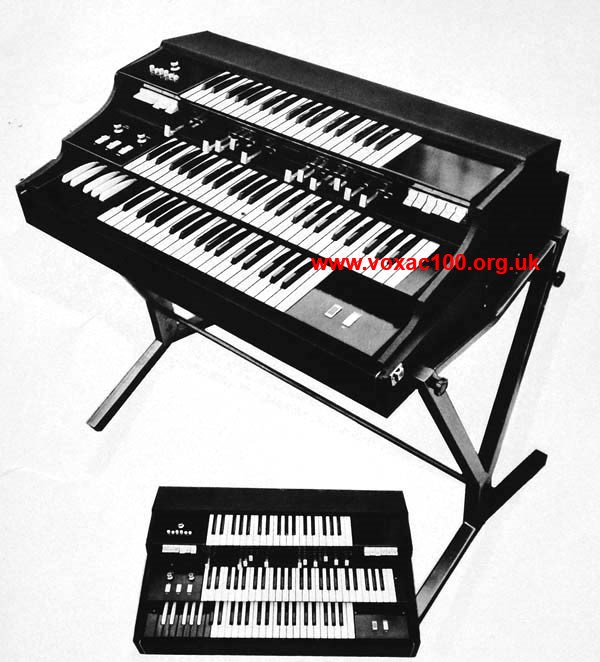

Detail from the catalogue of Summer 1973.
The Jennings J71 organ was the successor to the J69, much as the Jennings J70 was to the J68. In effect, the J71 was a J69 with "Walking Bass". A superb example can be seen on this page.

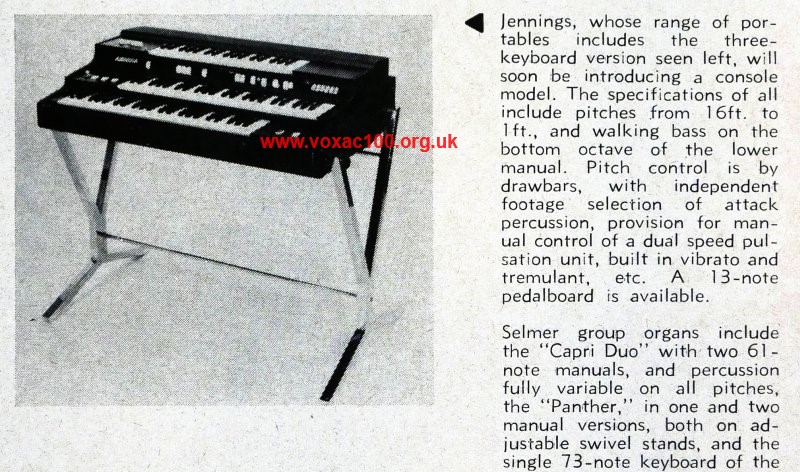

Spring 1970.

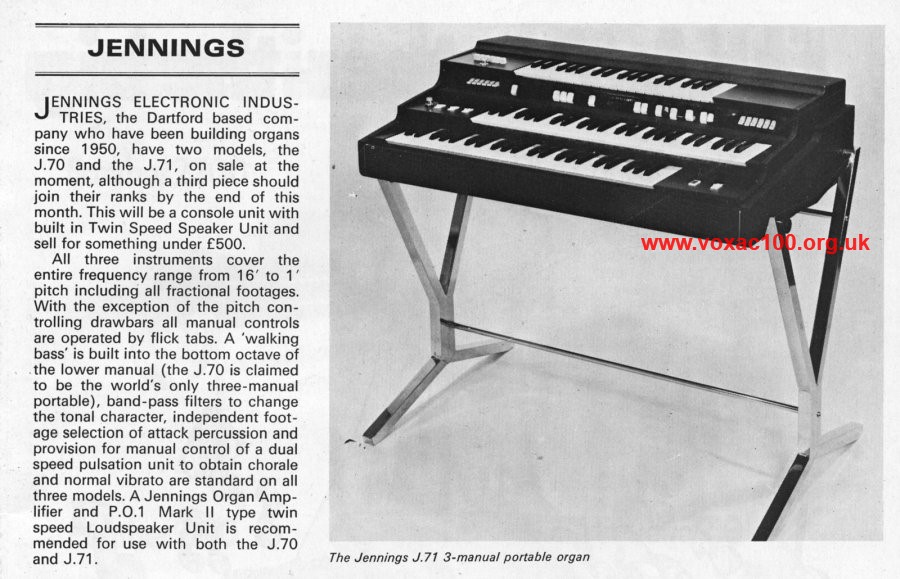

August 1970, review of the Jennings display at the Russell Hotel Trade Fair.
The Russell Hotel Trade Fair, August 1972, a J71 at right.
Tabs, drawbars, and controls
Below, for the moment, an overview of the voicings for the lower and upper (middle) manual. These run in step with the arrangement of the Jennings J70. Details of the third manual to come.

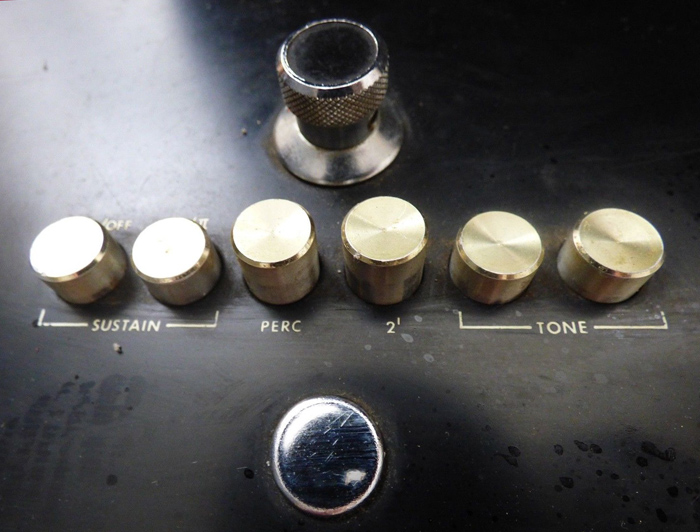

Top (third) manual
Push buttons: Sustain (ON/OFF and mode I/II); Percusion; 2' footage; Tone selection; a volume control above.
Upper (middle) manual, left-hand side
Tabs: "Mellow"; "Pulse On"; "Slow Pulse Fast"; "Tone I"; "Tone II"; "Tone III".
Pedal bass drawbars (two): "Pedal Tone".
Drawbars Lower Manual: 16'; 8'; 4'; [Mixture] IV; and two for "Tone".
Upper (middle) manual, right-hand side
Drawbars Upper Manual: 16'; 8'; 5 1/3"; 4'; 2 2/3'; 2'; 1 3/5"; 1'; two drawbars for "Tone".
Tabs: "Mellow"; "Perc"; "Perc 8'"; Perc 4'"; "Perc 2 2/3'"; "Perc 1'".
Lower manual
Apron front left: Walking Bass controls, Vibrato and Tremolo.
Not much seen these days, a JEI "Portable Electronic Organs" folder, the one in view supplied with a Jennings J71 three-manual organ, contents unknown, perhaps analogous to the folders compiled by JMI for the Super Continental (circuit diagrams, notes on operation, and so on).
