Vox MC50 serial number 2666

Ready for sale in Spring 1965

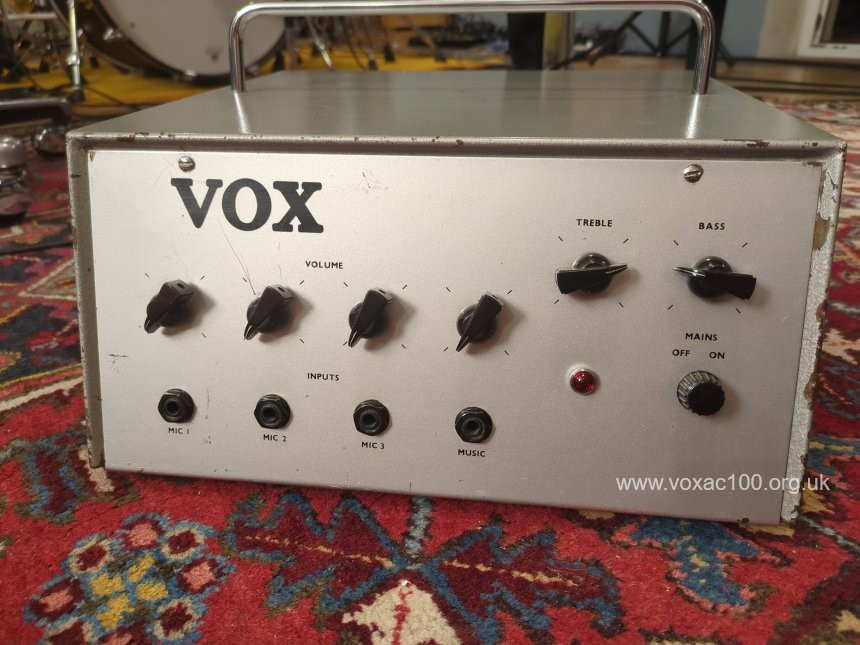

On this page, thanks to Christian, some details of Vox MC50/4 (all valve, four inputs) serial number 2666, assembled for JMI by Triumph Electronics in Purley, ready for sale in Spring 1965. The original yellow-print Mullard EL34s have February '65 paint codes. This is one of the best preserved early MC50s.

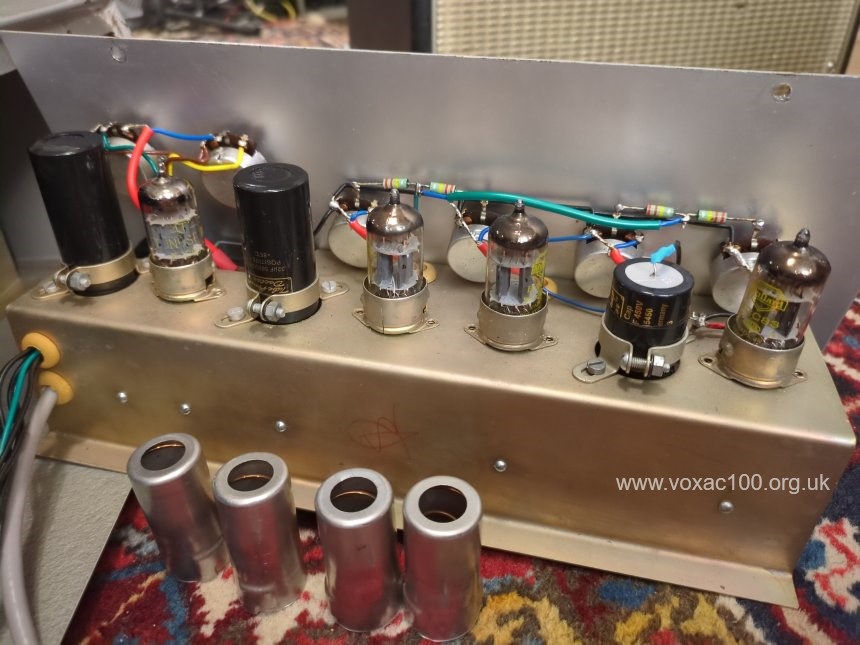

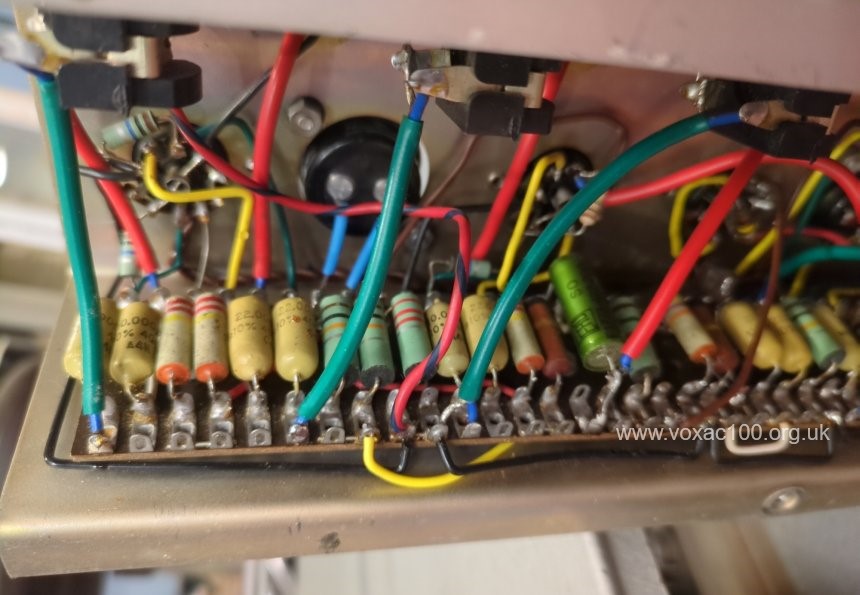

Preamp assembly behind the main fascia.

Mullard mustard capacitors with "C4N" date codes = third quarter of 1964 for their manufacture.

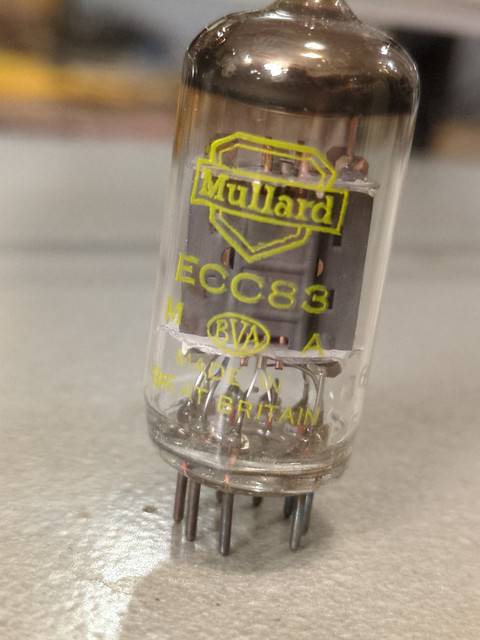

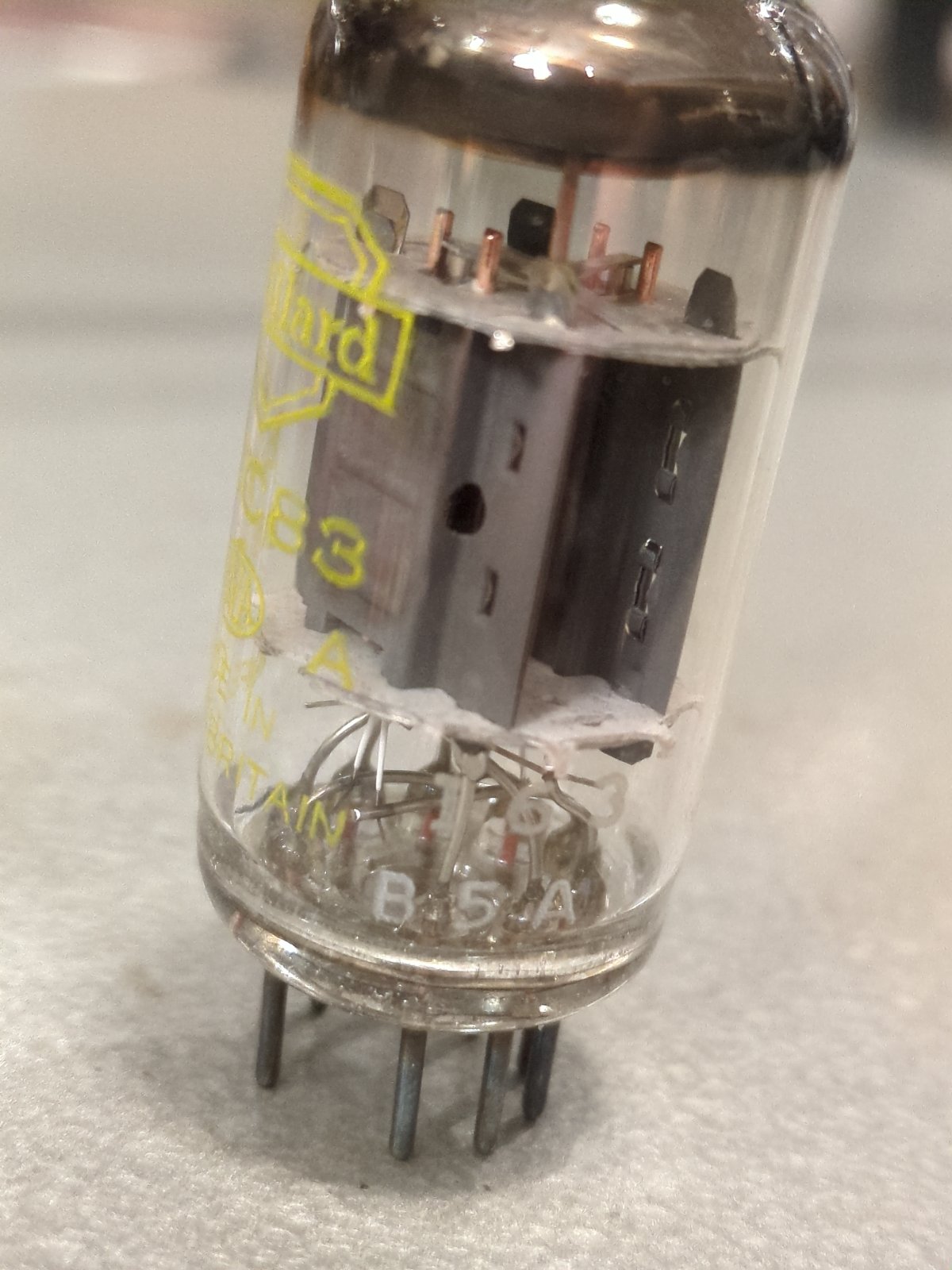

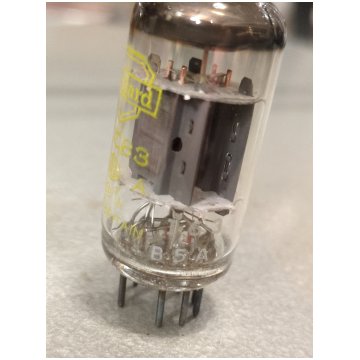

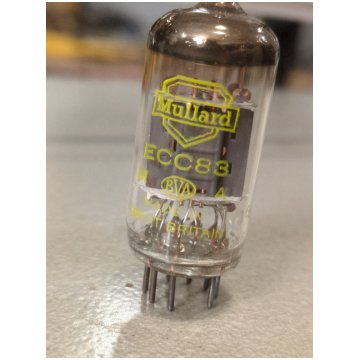

Yellow-print Mullard ECC83, production and paint codes for January 1965.

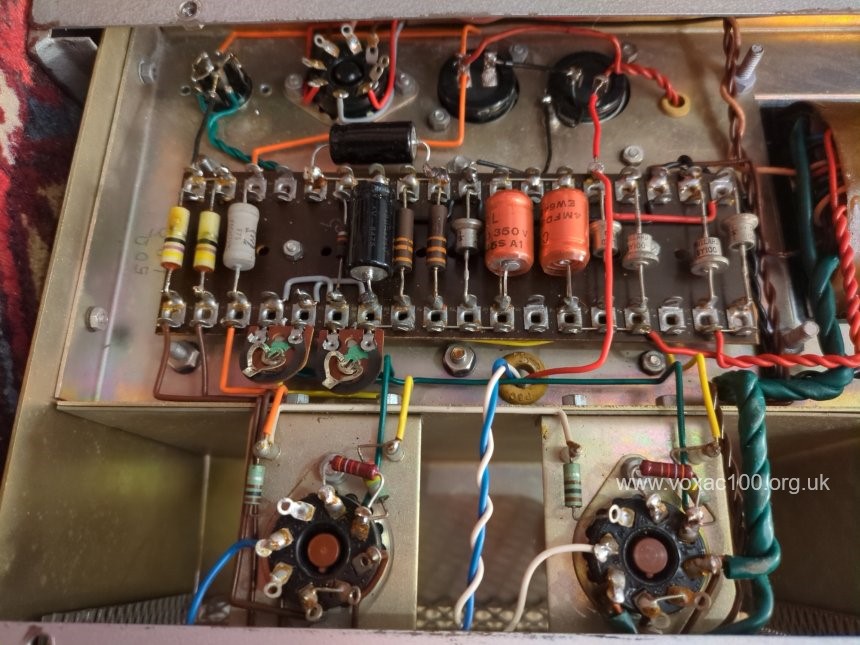

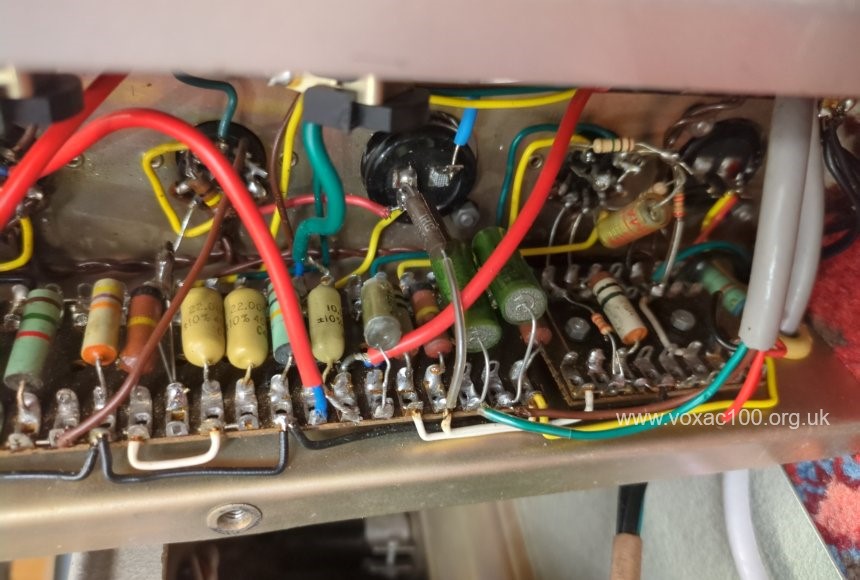

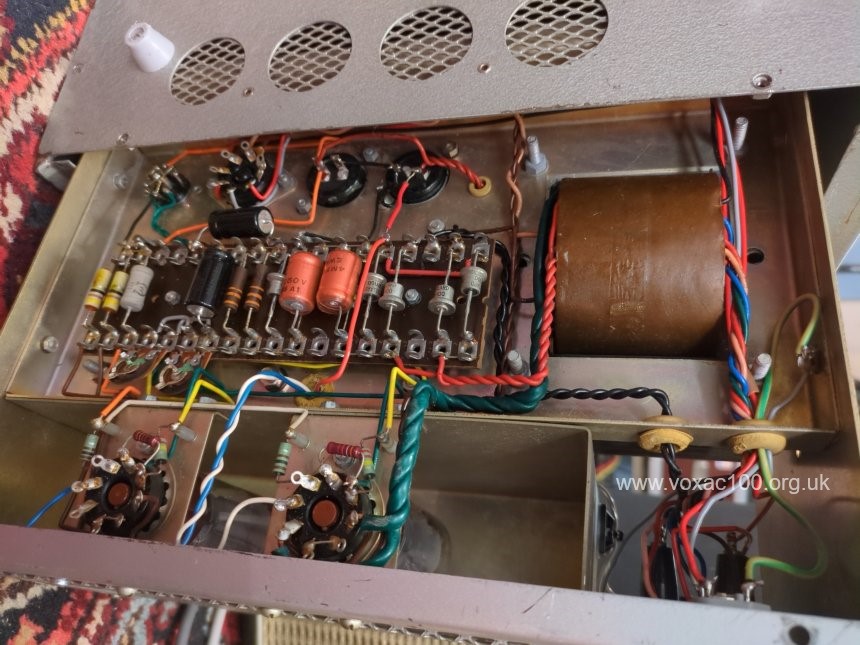

Power section, underchassis.

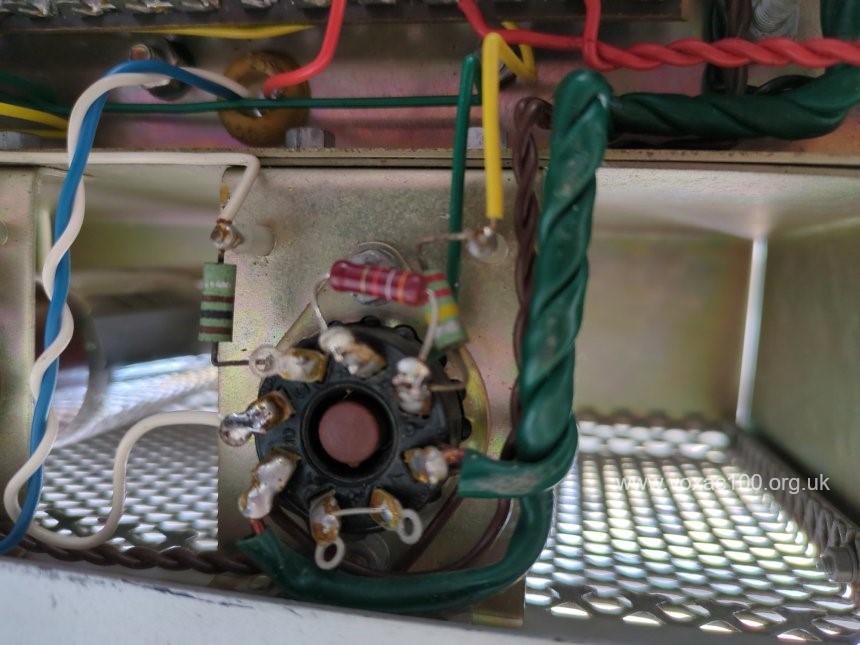

Detail of one of the EL34 sockets.

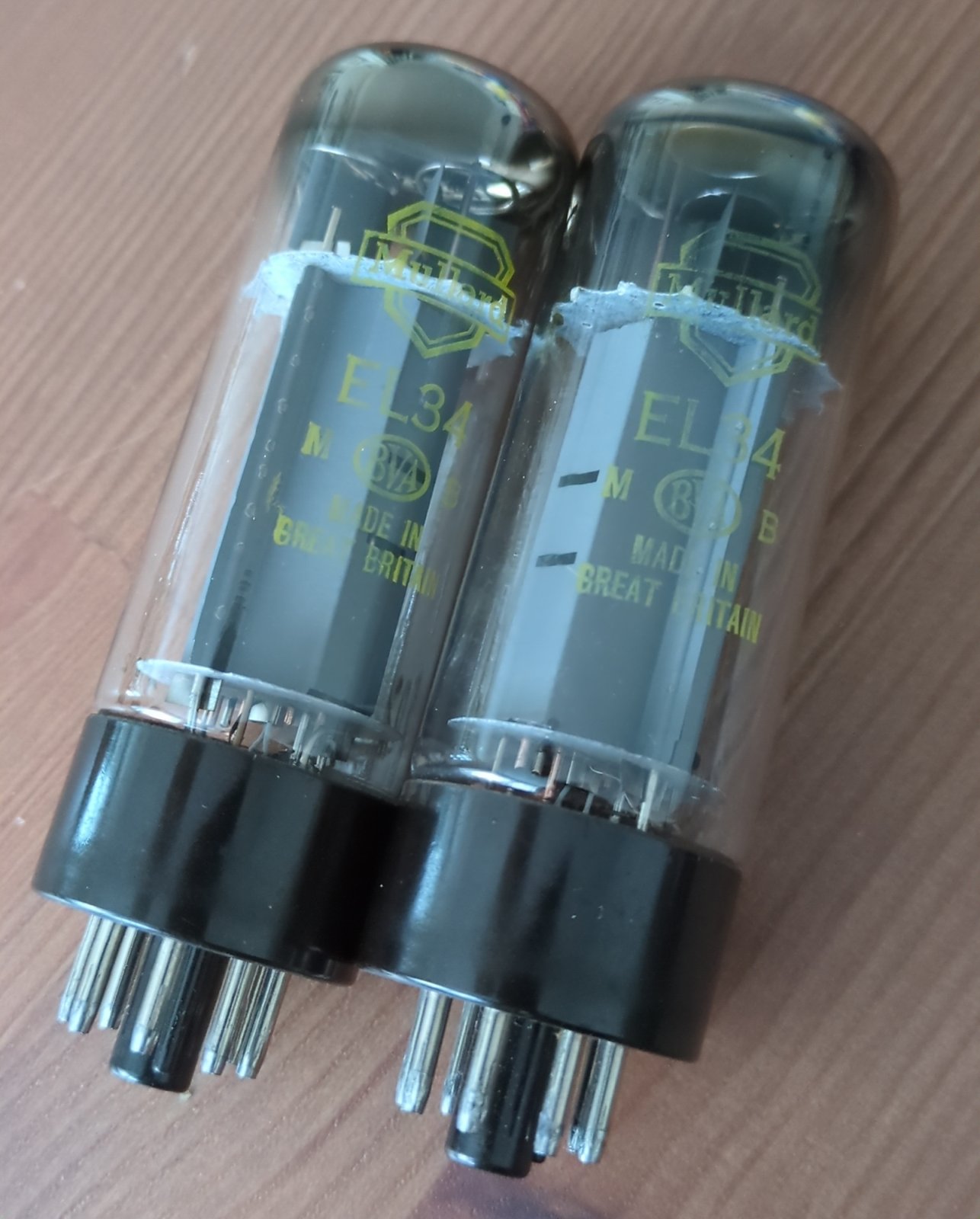

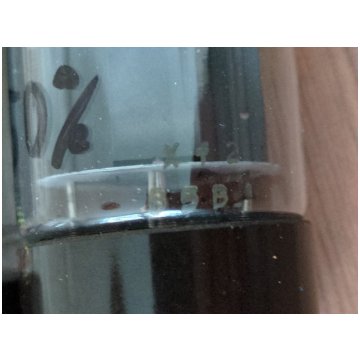

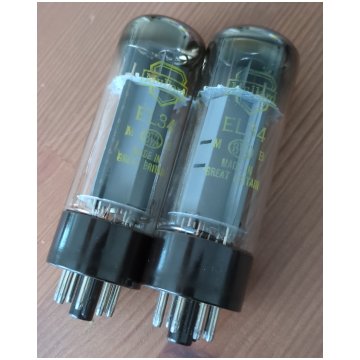

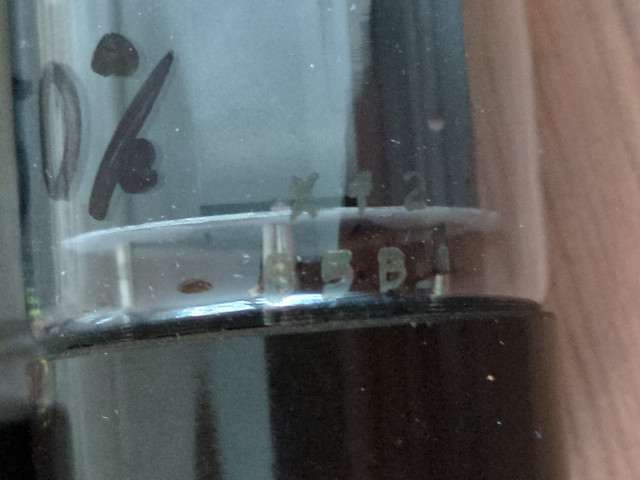

Yellow-print Mullard EL34s (xf2s), production and paint codes for February 1965.

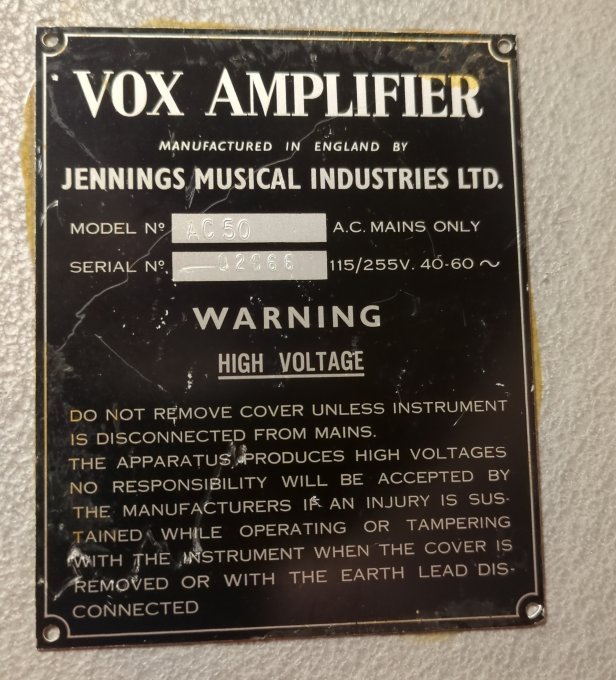

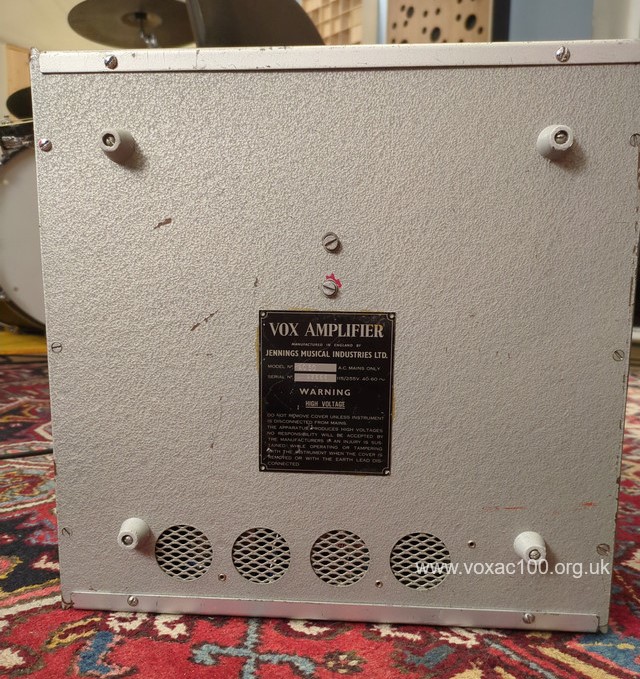

Serial number plate araldited to the base of the case.

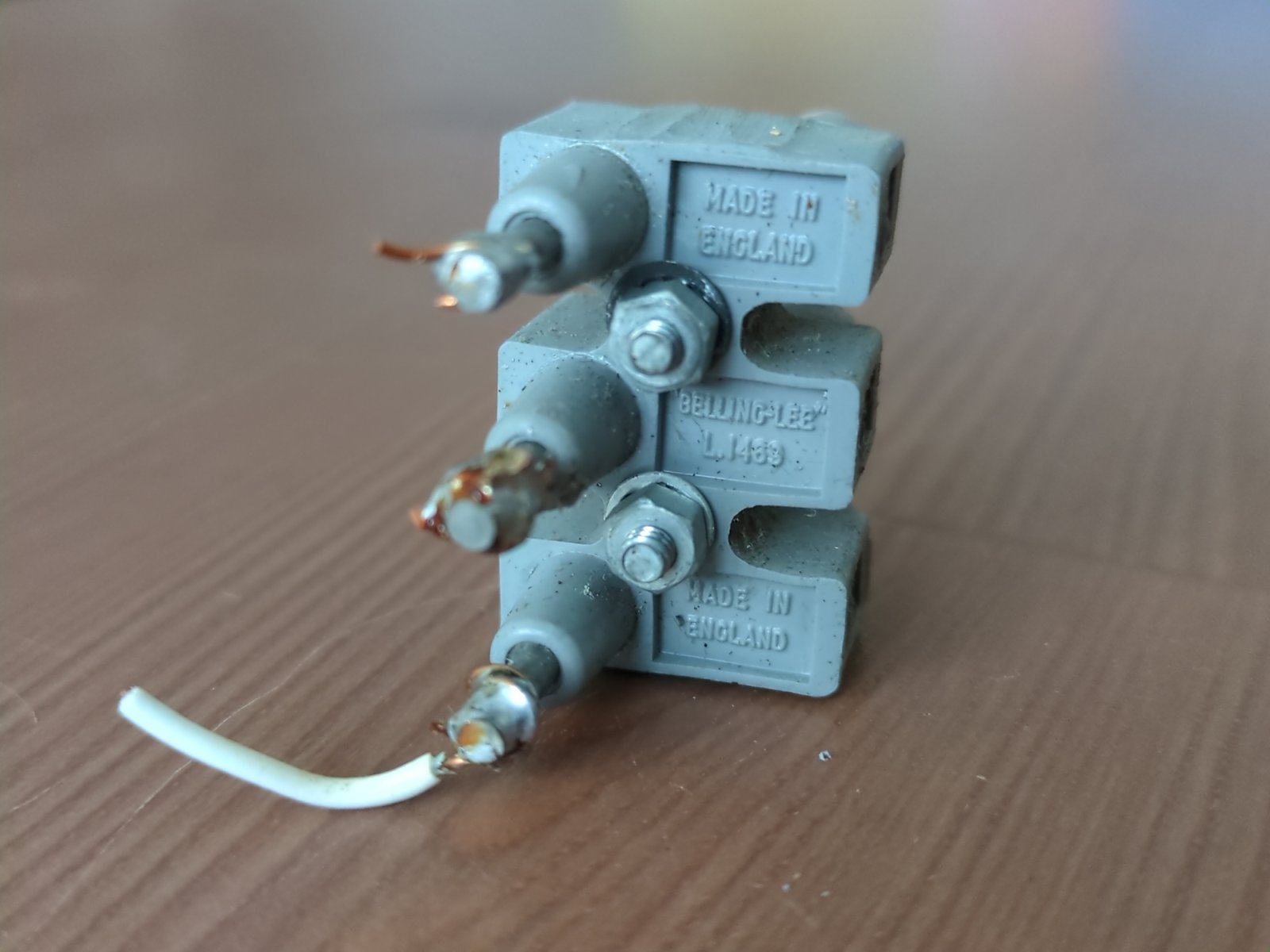

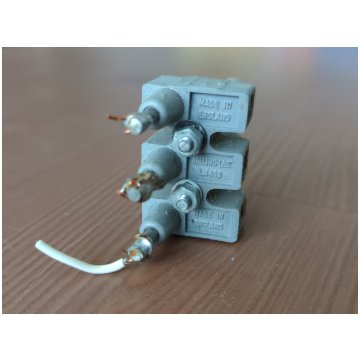

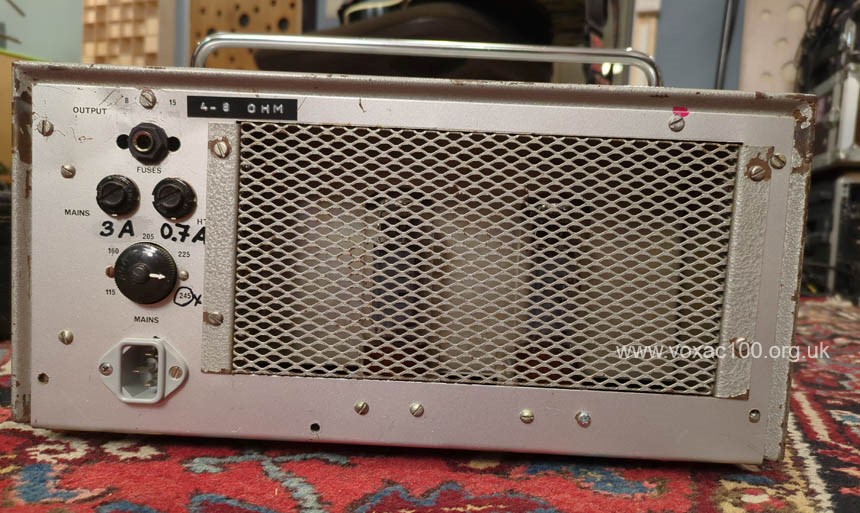

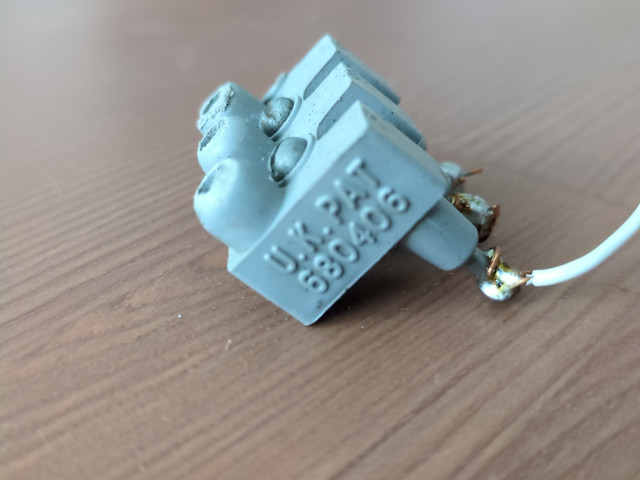

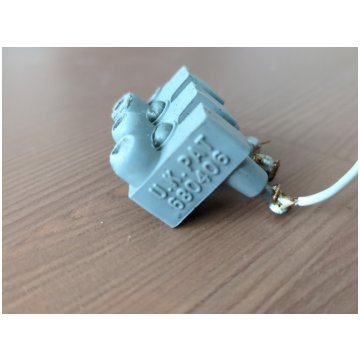

The original Belling Lee speaker connectors, now replaced at the top of the back panel by a jack socket.
