Vox Pocket Reference Guide - late 1965

Page 12

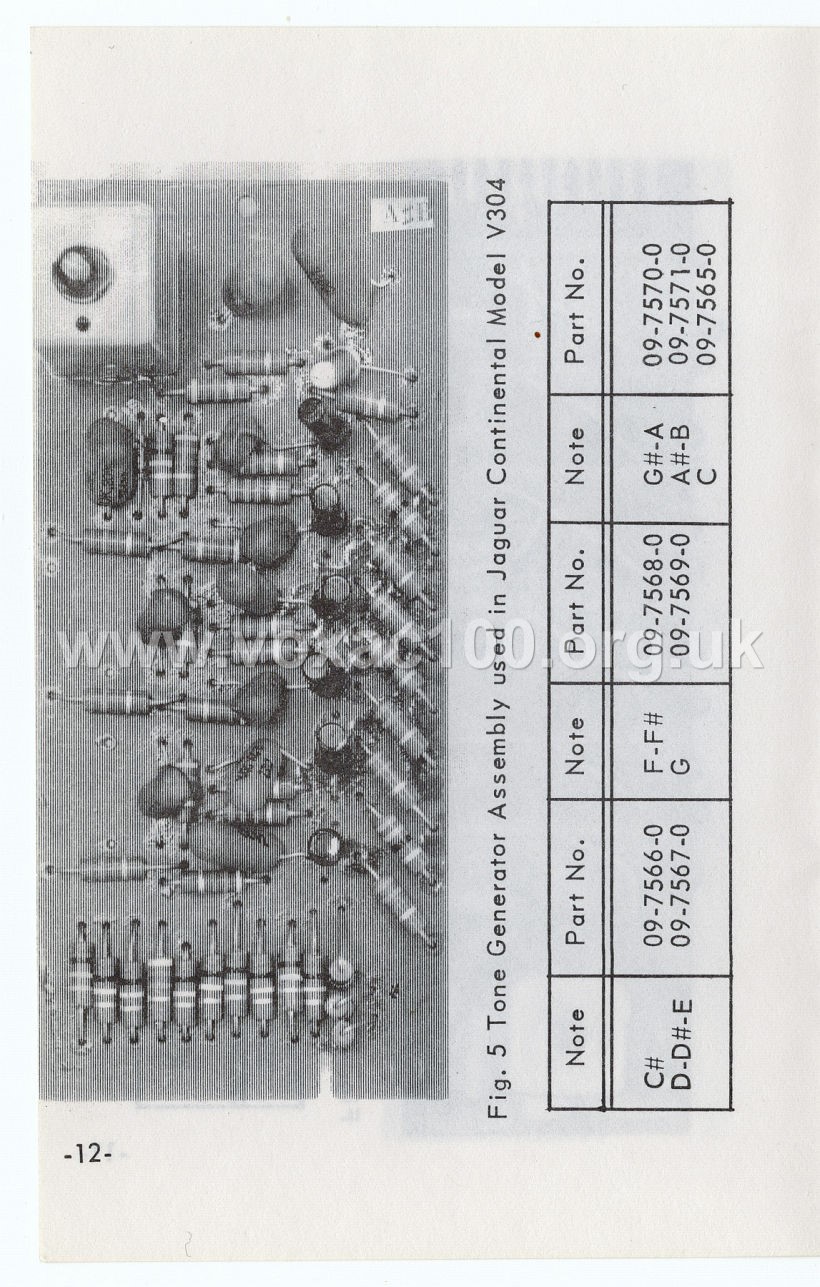

Photograph of the tone generator board used in Vox Jaguar Continental V304 organs. Part numbers for the note circuits.

Vox Pocket Reference Guide, Thomas Organ, late 1965
